Overview

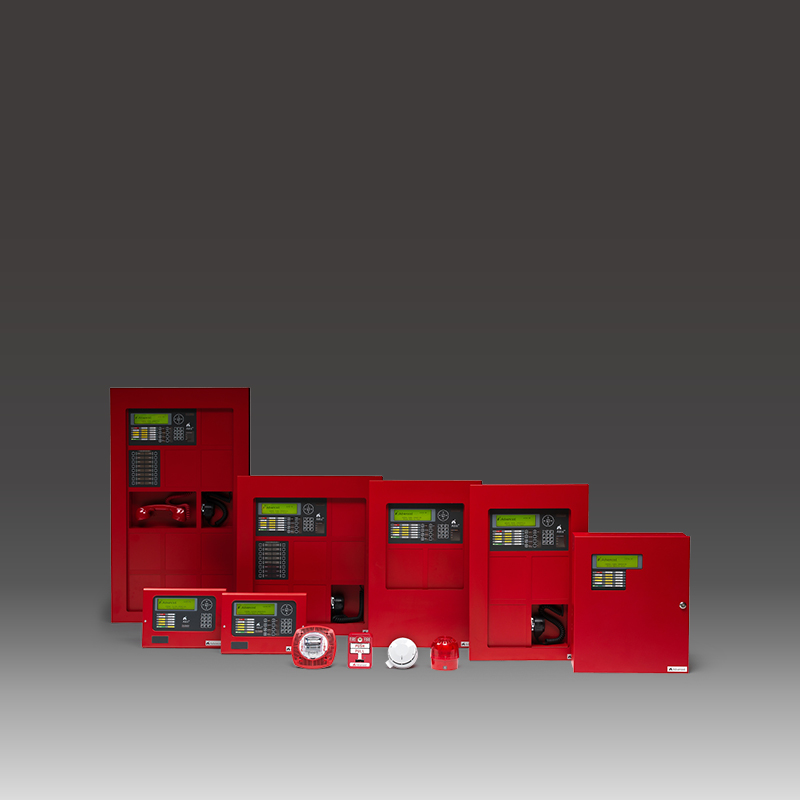

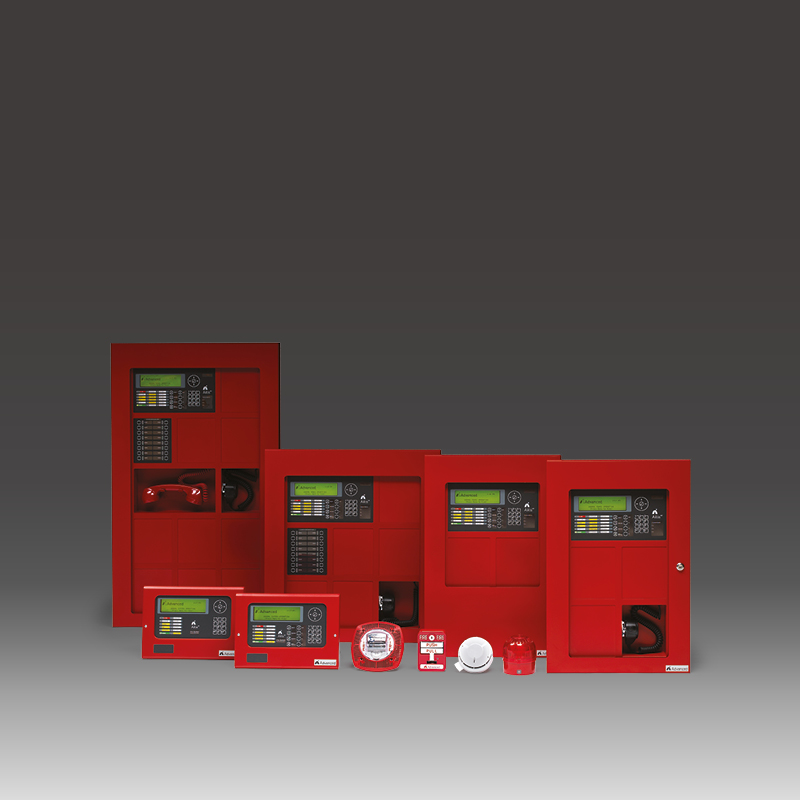

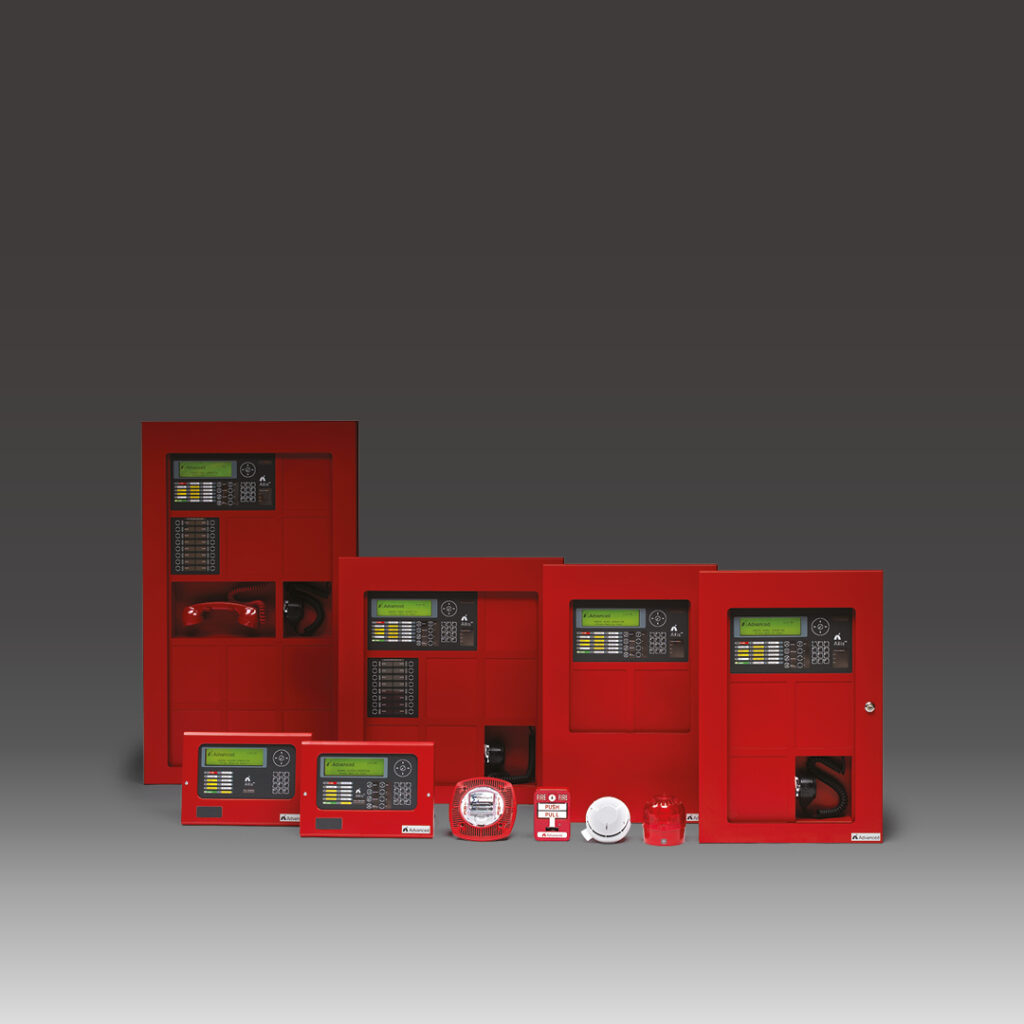

Axis AX is our complete solution for customers demanding a versatile fire alarm system of high-performance fire panels, audio systems, command centres and devices that’s fully approved to UL 864 10th Edition.
It combines addressable panels with audio systems, command centres and a versatile and comprehensive range of wired devices including CO detectors to bring you performance, quality and ease of use.
Axis AX has been designed to go anywhere you need high quality, reliable and easy-to-use fire detection and control, from mass transportation and industrial complexes to landmark developments, historic buildings and public services.
To find out more about the new features and changes in UL 10th Edition Axis AX control panel software, download our Features and Changes guide.
Video
Product features
Easy to install and use
- Easy-fix removable chassis and in-built software make Axis AX fire panels quick and easy to set up
- Powerful networking, extensive configuration options and comprehensive cause and effect put you in complete control of your fire alarm system

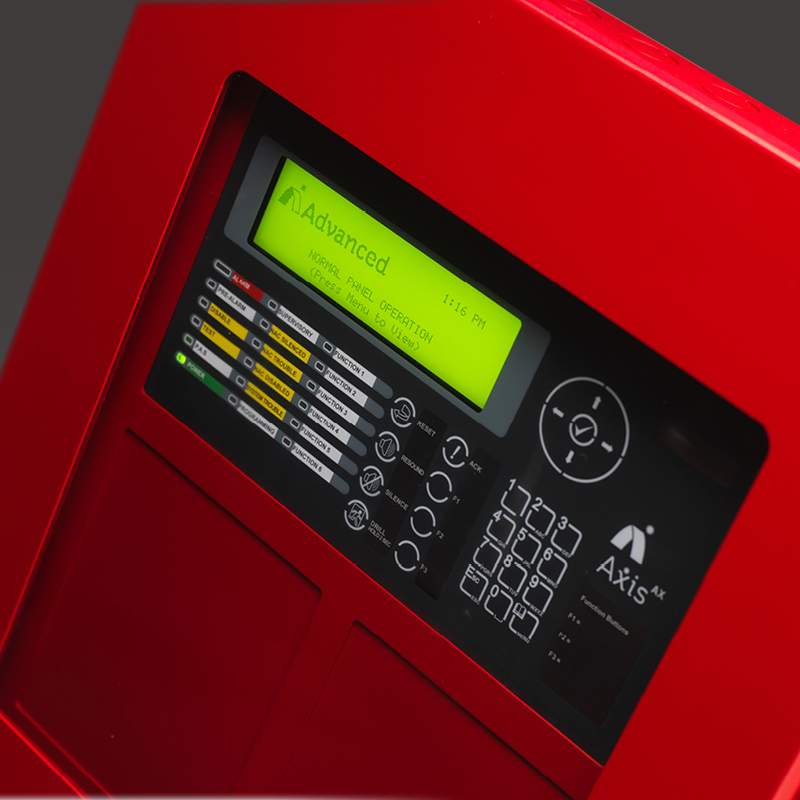

- Intuitive controls and menus, with simple click-and-select programming for simple and easy commissioning

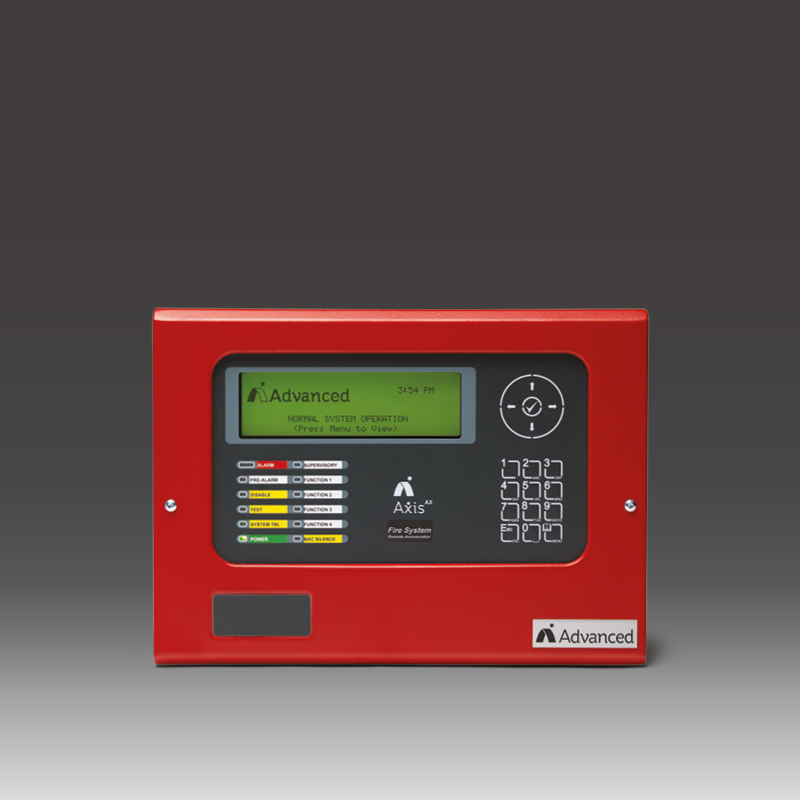

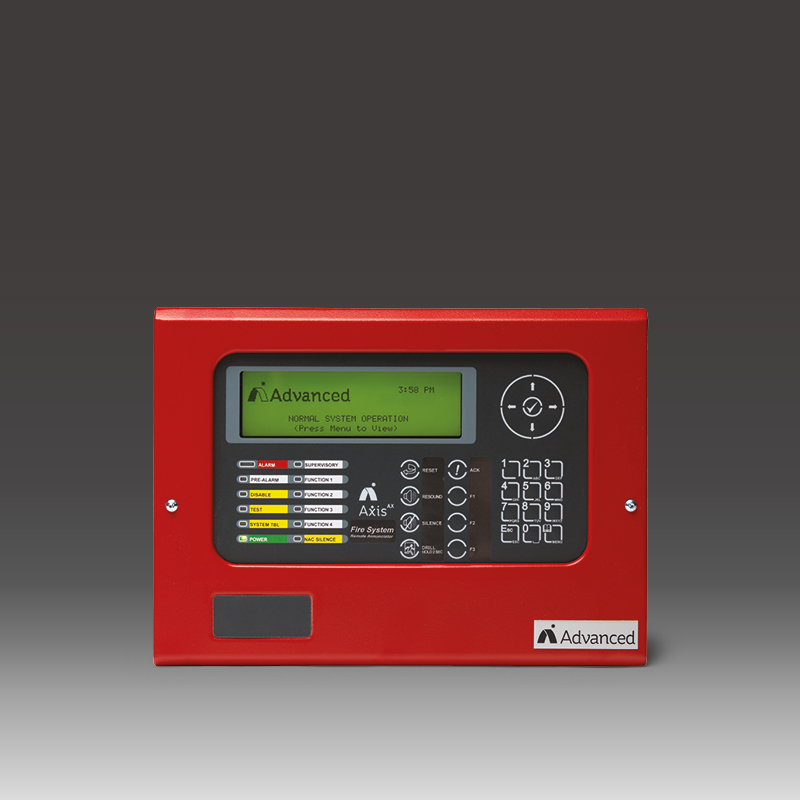

- The panels support intelligent annunciators, I/O drivers and BMS interface for integration with building management systems
- All panels and control centres are manufactured in the UK and certified to UL 864 10th Edition – File No. S35979
Versatility and choice
- Axis AX fire systems are scalable and flexible, able to adapt as required with minimum disruption

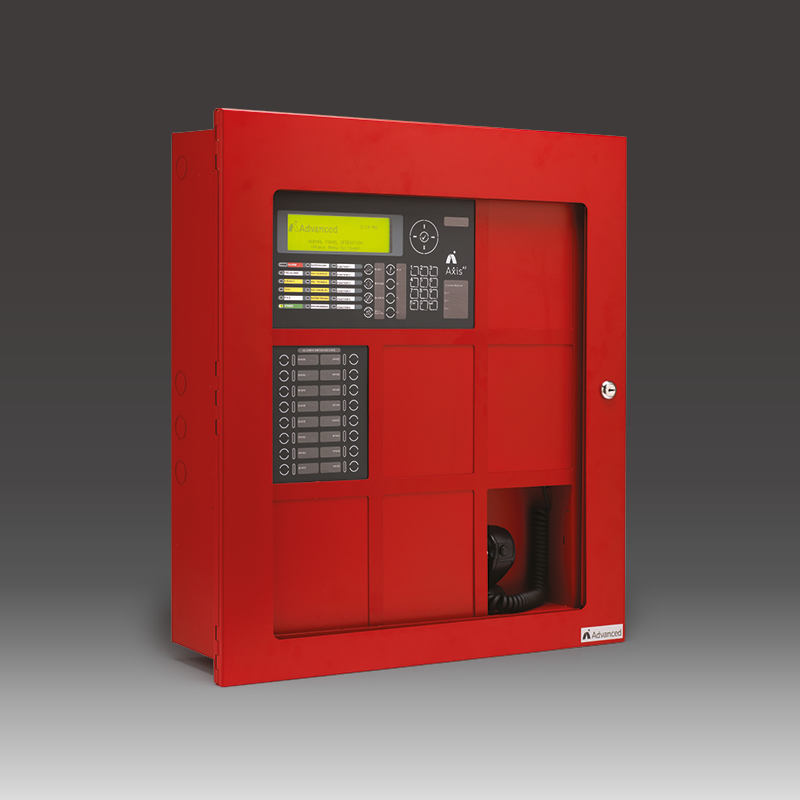

- Standalone control panels in one, two and four SLC formats so you can choose the panel size that meets your requirements and budget

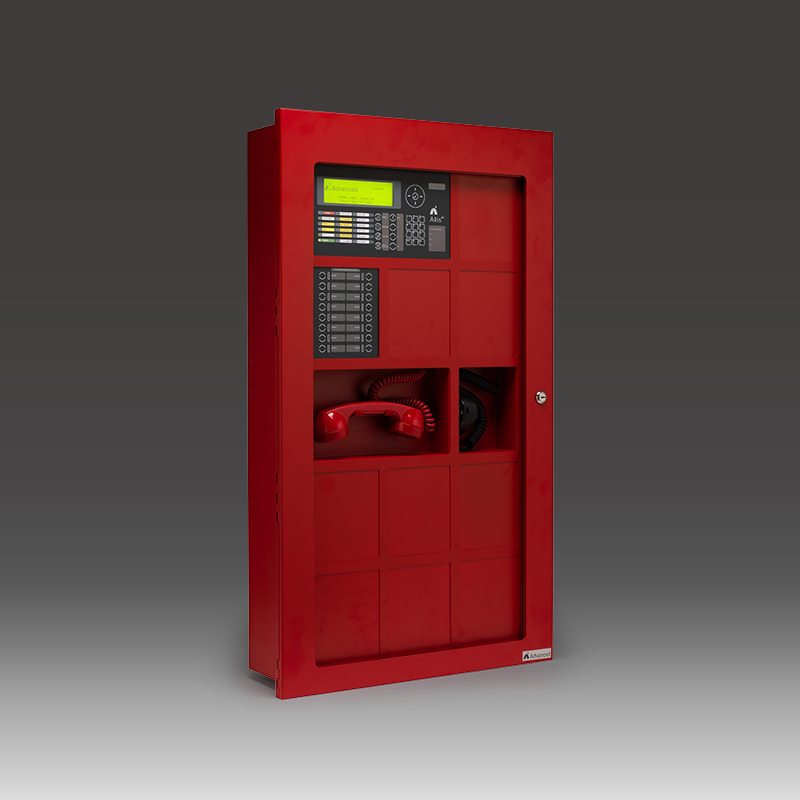

- Command centres in modular format, offering a wide range of configurations and applications
- Each 500mA digital signalling line circuit supports up to 126 intelligent devices
- Up to 200 zones per panel and 25,000 devices per network
Packed with premium features
- Standard peripherals include direct USB and RS232 PC connections, and peripheral expansion is built in for added peace of mind
- Modular in construction, with the ability to program your own company logo to appear on the fire panel screen
- 19 built-in LEDs as standard, 5 of which are freely programmable
- Unique auto-test of battery cell integrity
- Easy to synchronise audio and strobes
- Command centres are intuitive and easy for firefighters to operate
- Integrated control of fans and dampers, with unique spreadsheet-style programming matrix
Powerful, flexible service reporting
- Demonstrate proof of servicing, download service reports, inspect the device history and keep track of service schedules
- Customisable data filters make it easy to focus on potential trouble spots and ensure they’re checked and tested during servicing
- Predict which devices are becoming contaminated so you can clean/replace them before they cause a false alarm
- Customise reports to show the data you need and export it as PDF, Excel or HTML files to prove compliance simply and efficiently
In-built diagnostic tools
- Unique diagnostic features provide readings on the panel from any loop, making it easy to identify and investigate any issues
- Comprehensive network diagnostic tool prevents fires and faults from being transmitted across the network
- Built-in multimeter measures all voltages and currents across the system, so you can speed up the commissioning process by identifying voltage/ current levels in real time
Solutions
Synchronised audio, a dynamic approach to smoke control and enhanced networking capability.
PerfectSync
PerfectSync delivers best-in-class synchronisation of audio and strobes for fire, life safety and mass notification applications. PerfectSync achieves a level… View Solution
DynamixSmoke
DynamixSmoke offers a radical new approach to programming smoke control. Using a simple grid format to configure fans and dampers,… View Solution
Networking
Advanced delivers fast, reliable, peer-to-peer communications from the smallest two panel network up to a large 200 node network. Advanced… View Solution
Software
Easy to operate, easy to understand and making the complicated simple.
TerminalTool
TerminalTool lets you program your fire panel - on site or remotely - via a PC connection. The Advanced panel… View Software
ServiceTool
ServiceTool helps you demonstrate proof of servicing and keep track of service schedules with ease. Simply connect your PC to… View Software
ConfigTool
Our latest ConfigTool, (PC-Net-022) offers faster, more flexible and fuss-free setup. ConfigTool is simple to use and lets you configure… View Software
LogoTool
LogoTool is a simple way to brand any Advanced panel with a customer or installer logo. Useful for reminding users… View Software
Brochure
Axis AX Brochure
Datasheets
You’ll find all the technical information you need in the datasheets.
Find out more...
Axis AX protects
Asia,India
Allahabad High Court, India
A high-performance Axis AX fire alarm system with automated voice alarm has been installed at a historic Indian high court…
View Case Study
Middle East
Marassi Galleria, Bahrain
A network of 19 UL-864-approved Axis AX fire panels from Advanced has been installed at the 178,000m2 Marassi Galleria shopping…
View Case Study
Asia,India
Korea Sri Lanka Friendship Hospital, Colombo
An Axis AX fire system from Advanced was installed as part of large-scale renovations at one of Sri Lanka’s most…
View Case Study
North America
Hilton DoubleTree Hotel, USA
One of the World’s most famous hotel-chains, Hilton, selected a high-performance Axis AX fire system from Advanced for its eight-storey,…
View Case Study
North America
Sands Pointe, Miami
Sands Pointe, one of Florida’s most upscale real estate developments, is now being protected by an intelligent Axis AX fire…
View Case Study
North America
IPEC Las Vegas, USA
Intelligent Axis AX fire systems from Advanced helped meet the unique challenges of installing a code-compliant fire system at the…
View Case Study
Middle East
Abu Dhabi International Airport
Abu Dhabi International, the second largest airport in the UAE, and one of the fastest growing in the world, has…
View Case Study
